DCC-9

DCC
DCC-9, manufactured by Thermolec, is an EV Energy Management System specifically designed to allow the connection of a charger to the main feeder of the panel without affecting the load calculation.Ideal for the installation of chargers in multi-res…

Electric Vehicle Energy

Management System

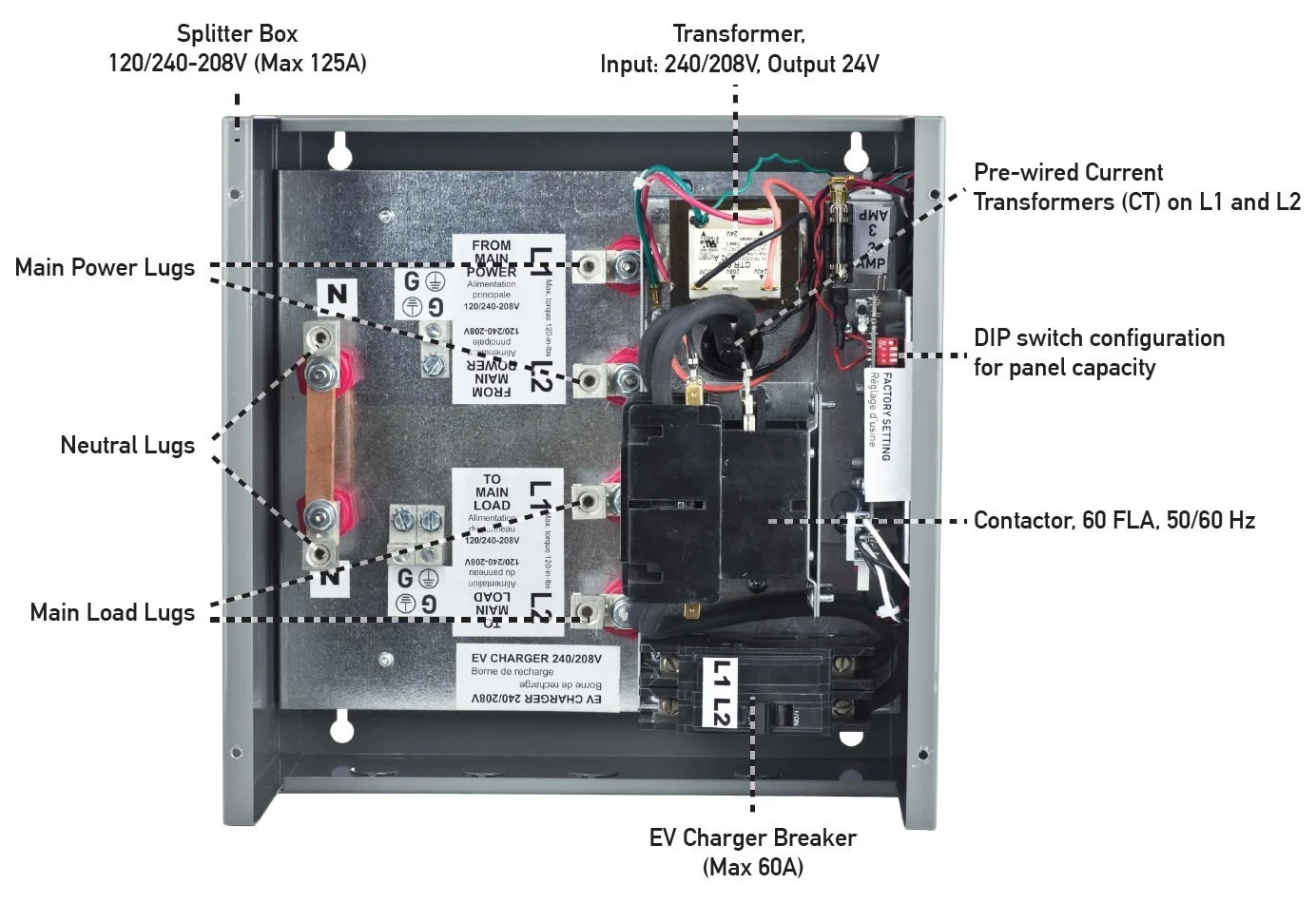

DCC-9, manufactured by Thermolec, is an EV Energy Management System specifically designed to allow the connection of a charger to the main feeder of the panel without affecting the load calculation.

Ideal for the installation of chargers in multi-residential buildings, such as apartments or condominiums.

Exterior installations will require DCC-9-3R.

DCC-9 The Best Solution for Electric Vehicle Charging in Condos (dccelectric.com)

How it works:
DCC-9 allows the connection of any EV charger to a fully loaded panel by managing the energy available at any given time.

  1. DCC does a real-time reading of the total power consumption of a home or condo electrical panel;

  2. It detects when the total power consumption of the main circuit breaker exceeds 80% and temporarily de-energizes the charger.

  3. When DCC detects that the total power consumption of the electrical panel is less than 80% for more than 15 minutes it automatically re-energizes the charger.

DCC will only allow power to be delivered to the EV charger if the total demand of the panel is below its full capacity.

Watch an installation example here.
