Eaton Industrial Control Relays - A Comparison Guide

At D.A.D. Sales we understand the high demand for control relays in the market and understand that navigating through the options available can often seem daunting and tedious. Which is why we have hand selected the most popular lines of control relays and crated a side by side comparison.

D1 Series

The D1 Series of relay provides a compact single-pole relay capable of handling 15 A. Multiple feature and voltage options allow for the perfect fit for any application.

D2 Series

The D2 Series is a compact line of relays with quick response time and long life. Available in DPDT and 4PDT configurations.

D7 Series

The D7 Series is a cost effective control relay with high dielectric strength and high current-carrying capacity.

XTRM Series

Eaton’s new line of XT Relays and Timers includes mini and standard frame control relays and auxiliary contacts, mini electronic on-delay and multi-function timers and an electronic star-delta (wye-delta) timer for use in star-delta (wye-delta) combinations.

XRU Series

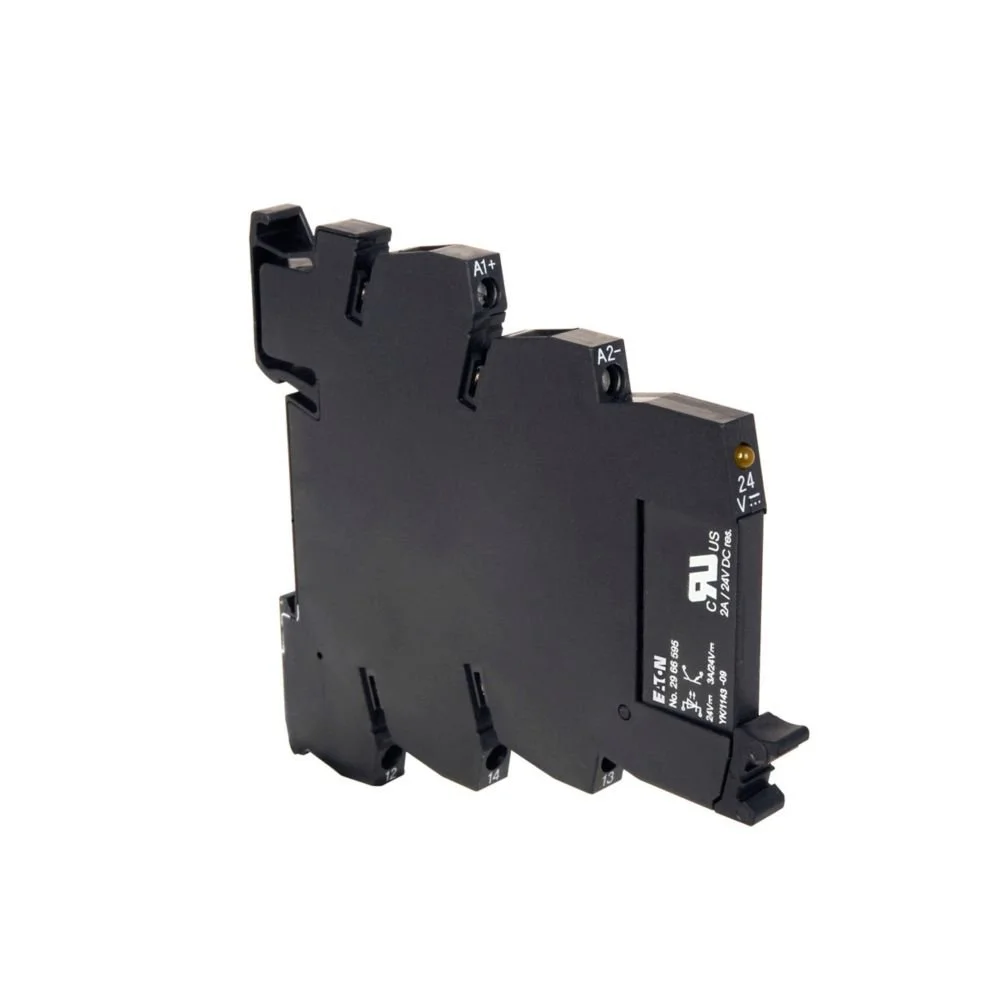

The XR Series Terminal Block Relays are ideal for applications that require a high switching capacity and long electrical service life. The relays are plug-in interfaces that connect to basic terminal blocks. The XR Series uses screw or spring-cage technology, as well as offers quick system wiring, superior safety features, clear labeling and a high level of modularity.

	D1	D2	D7	XTRM	XRU
Features
Polycarbonate cover	●	●	●
Indicator lamp	●	●	●		●
Pushbutton available	●	●	●
Panel Mounting	●	●	●	●
Din Mounting	●	●	●	●	●
Flange Mounting		●
Latching		●
Requires Base	●	●	●
IP20 finger and back-of hand proof				●
Contact Data
SPDT	15A max			6A (200V-240V) 3A (380V-415V)	6A max
DPDT		12A max	15A max	6A (200V-240V) 3A (380V-415V)	6A max
3PDT			15A max	6A (200V-240V) 3A (380V-415V)
4PDT		6A max	15A max	6A (200V-240V) 3A (380V-415V)
Material	Silver Alloy	Silver Alloy	Silver Alloy		AgSnO
Dielectric Strength	1500V	1500V	1500V (DPDT) 2500V (3PDT, 4PDT)
Expandable	no	no	no	via auxilary contacts	no
Timer Relay	no	no	no	On-delay and multifunction timers	no
Coil Data
AC	6 to 240 Vac	6 to 240 Vac	6 to 240 Vac	12Vac to 550Vac (50 Hz) 12Vac to 600Vac (60 Hz)	24Vac to 230Vac (50 Hz)
DC	6 to 110 Vdc	6 to 110 Vdc	6 to 110 Vdc	12Vdc to 220Vdc	12Vdc to 220Vdc
Power - VA (Vac)	0.9VA	1.2VA	1.2VA (DPDT) 1.5 VA (3PDT, 4PDT)	3.4VA - 25VA
Power - Watts (Vdc)	0.7W	0.9W	0.9W (DPDT) 1.4W (3PDT) 1.5W (4PDT)	1.2W to 22W	50mW to 1.2W
General Data
Ambient Temperature (Storage)	–40 °F to +185 °F (–40 °C to +85 °C)	–40 °F to +185 °F (–40 °C to +85 °C)	–40 °F to +185 °F (–40 °C to +85 °C)
Ambient Temperature (Operational)	–40 °F to +131 °F (–40 °C to +55 °C)	–40 °F to +131 °F (–40 °C to +55 °C)	–40 °F to +131 °F (–40 °C to +55 °C)	Open -13°F to 122°F (–25°C to +50°C) Enclosed -13°F to 104°F (–25°C to +40°C)	–4 °C to +140 °F (–20 °C to +60 °C)
Response time	20 milliseconds	20 milliseconds	20 milliseconds (30 ms for latching)	0.15 seconds to 60 minutes (depending on setting)	7-8 milliseconds
Maximum operating frequency (ops/hr)				9000
Life (Mechanial Operations)	10,000,000	10,000,000	10,000,000	10,000,000	30,000,000
Life (Electrical Operations)	100,000	200,000	100,000 (DPDT) 200,000 (3PDT, 4PDT)
Life (Electrical Operations AC Operated)				10,000,000
Life (Electrical Operations DC Operated)				20,000,000
Standards	RoHS Compliant cRUus, CE, CSA	RoHS Compliant cRUus, CE, CSA	RoHS Compliant cRUus, CE, CSA	IEC/EN 60947 VDE 0660, UL, CSA	cULus listed, CE

Whether its for use in electrical isolation between input and output circuits, or for use with mini and standard frame size contactors and starters, Eaton Industrial Control relays have a solution to fit your application. Our solutions team is happy to help you with any size job and are available for phone call consultations or presentations on our extensive line card.
