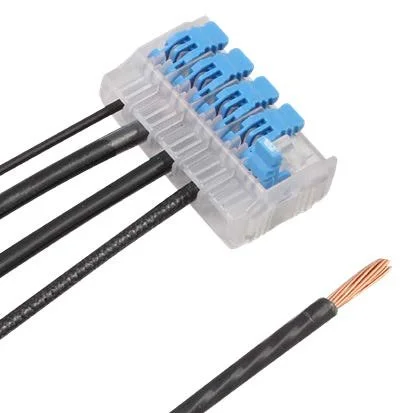

Introducing “In-Sure® Lever Wire Connectors” by Ideal

INSERT. CLOSE. CONNECT.

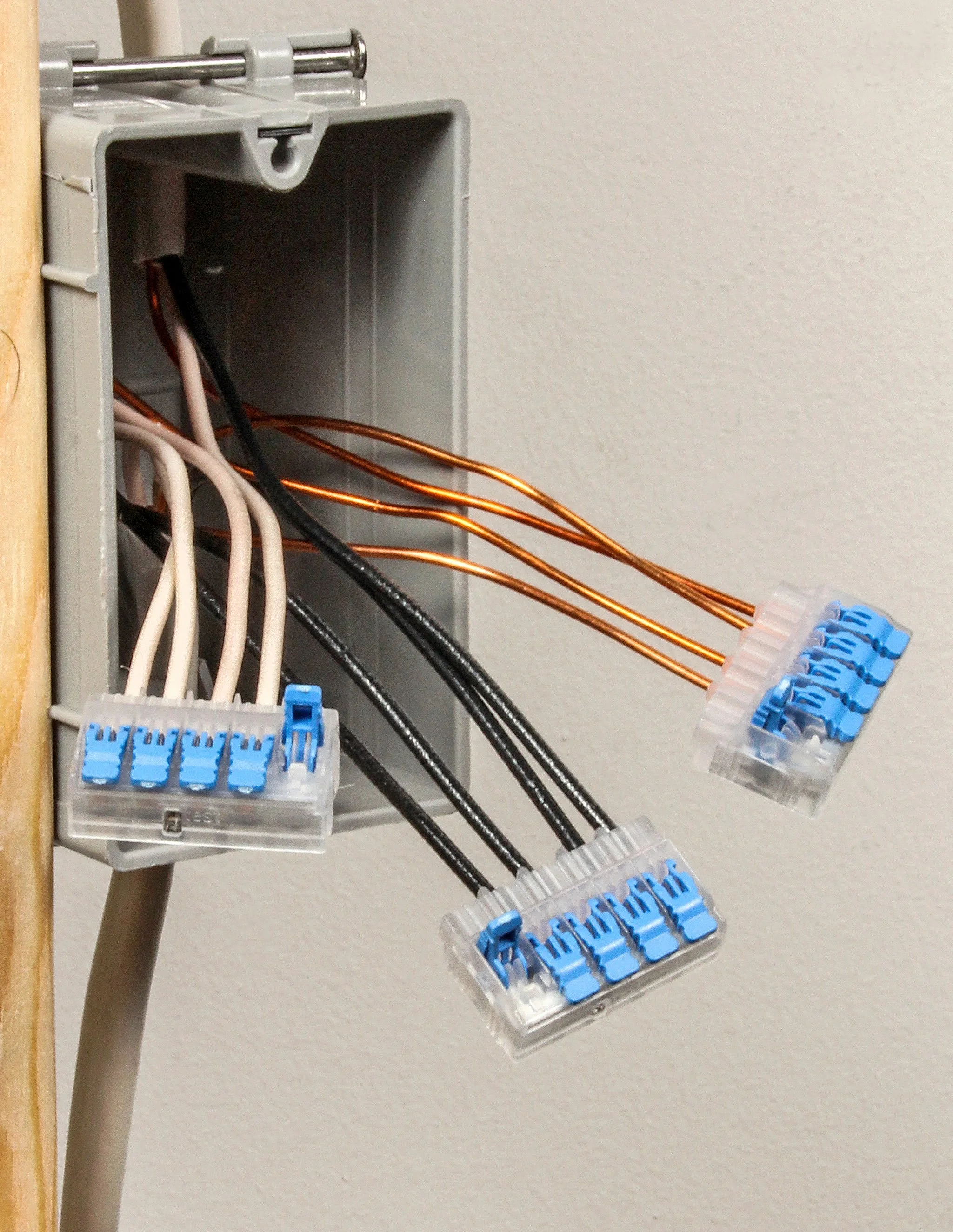

Levered wire connectors provide the perfect solution for joining solid and stranded wires. These versatile connectors have a compact design that takes up minimal space in junction boxes and enclosures.

  • Releasable connector for solid & stranded wires

  • Wire Range: 24 - 12 AWG

  • Modern alternative to traditional connectors

  • Safe, reliable and re-useable

  • Two-stage lock for a secure connection

  • Clear housing allows verification of connection

  • Continuity check port and strip length guide

  • Compact design for tight spaces

  • For use with Cu/Cu combinations only

  • Solid wires can be inserted without opening lever

ModelPortsCurrent Rating (A)Wire CombinationQty.Part #
L222 Port20A600V*

Solid: 24 - 12 AWG
Stranded 24 - 12 AWG
Box of 15030-10L22
Jar of 50030-50L22J
Box of 4,00030-16L22
L233 PortBox of 10030-10L23
Jar of 35030-35L23J
Box of 2,50030-16L23
L255 PortBox of 7530-10L25
Jar of 20030-20L25J
Box of 1,50030-16L25

About Ideal

IDEAL has served the international markets through selected representatives and distributors since the 1960’s but the first company owned international location outside North America was opened in Warrington, United Kingdom in 1992.

 IDEAL INDUSTRIES EMEA continues to support their selected distributors and customers through their sales and technical support office in Warrington with products shipped across EMEA.

 To best serve their customers they focus on ensuring new products are application focused, easy to use and affordable as well as providing quality support and service honouring the principle of J. Walter Becker.
