Modular Linx system by FSR

FSR

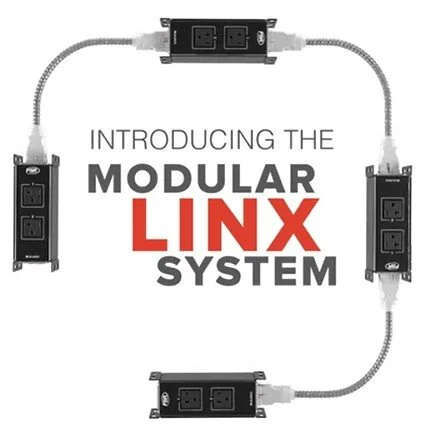

The Modular Linx System elegantly distributes two 20 Amp AC power circuits to create a relocatable and reusable modular power system. The system utilizes a patented locking connector designed for rugged use in a small form factor. This UL-listed system can be used to distribute power to a maximum of 20 AC outlets on each single circuit.

The Modular Linx is installed under the work surface with a power distribution box at each point of use. The cabling can also be used in open walls and ceilings. Tee cables can also be used to split the system at any point in its path. A minimum system will consist of an input feed, power distribution boxes, and connecting cables.

IN-FEED OPTIONS:

The power for the system can originate from the floor via a Smart-Way Furniture Feed Device Box or poke-through;
or from a pluggable single gang wall plate or directly hard-wired. In-feed options contain a female connector

DISTRIBUTION BOX:

The MLS-2AC2 power distribution box has a male and female connector to allow daisy-chaining. It provides two 20 amp NEMA 5-20R outlets each connected to a separate circuit. Two small flanges on the top surface are provided for mounting.

CONNECTING CABLES:

The MLS-2AC2 units are interconnected with connecting cables MLS-2CC(x), where the x designates length in feet. Stock cable lengths are 2, 3, 4, 5, and 6 feet. Connecting cables can be strung together to make longer cables or create a separation point.

TEE CABLE:

The MLS-2TC can be inserted between any connecting cables or between a connecting cable and the input or output of any distribution box.

Features:

  • Designed for 2 to 40 AC Outlets

  • Installed as Single or as a Dual Circuit

  • UL Listed - CSA Certified

  • Acceptable for interrupting current (make or break) under full load

  • Connectors are fully encapsulated for reliability and safety

  • Cabling suitable for use in environmental air handling spaces (plenums)

  • Eco-Friendly, Low Smoke, V0 rated, RoHS compliant materials

Applications:

  • Multi-Purpose & Training Rooms

  • Ballrooms

  • Conference Centers

  • Benching Applications

  • Classrooms

  • Libraries

  • Data Processing Centers

  • Call Centers

  • Emergency Locations



About FSR

Established in 1981, FSR manufactures a wide variety of signal management and infrastructure solutions for the audio / video, datacom, education, furniture, hospitality, government, and religious markets, including floor, wall, table, and ceiling connectivity boxes, as well as a full line of interfaces, distribution amplifiers, matrix switchers, seamless switchers and HDBaseT & CAT-X signal delivery solutions.

The company is an Energy Star Partner and complies with the American Recovery and Reinvestment Act of 2009 to demonstrate its deep commitment to preserving the planet. FSR offers live 24/7 technical and sales support throughout the country from expertly trained technicians and sales representatives.

HeadQuarters:
244 Bergen Blvd
Woodland Park, NJ 07424

For more information, please contact us at:

Sales or Product Inquiriessales@fsrinc.com
Product Technical Supporttechsupport@fsrinc.com
Website Issues or Suggestionswebsupport@fsrinc.com
