Floor heating calculator and showcase by Ouellet
Thinking about adding in-floor heating to your next renovation plan? Ouellet has got you covered with their range of Floor Heating Cable. Plan your installation with their floor heating calculator. Based on the surface area of the floor to be heated, the calculator will tell you which products you need and the manufacturer’s suggested retail price.
Please refer to the product’s installation manual for details on how to complete your installation.
Check out the Ouellet Floor Heating Calculator and follow the steps below.
1) Create a plan of the room to be heated. Draw it to scale and include all dimensions. Include all spaces taken up by fixed elements (shower, bath, vanity, toilet (4 ft.² or 0.37 m²), cabinets, washing machine, tumble dryer, etc.). Calculate the total surface area to be heated. (Note: Don’t forget to subtract the fixed elements from the surface area to be heated.)
2) Calculate the perimeter of the surface area to be heated, taking into account all clearances required, e.g., interior walls, exterior walls, bath, show, island, etc.
3) Enter the resulting surface area and perimeter into the floor heating calculator in the appropriate fields.
4) Because the calculator is designed to suggest one or more products that will cover an area of exactly the size of the surface area or slightly smaller than the surface area to be heated and because it’s impossible to know where the cable will end exactly during installation, make sure you include an area of the floor that doesn’t need to be heated. This space will be used for excess cable during installation (e.g., behind a toilet, behind a door or along a wall - a space that won’t affect your comfort). Note: The cable cannot be installed in areas where there will be permanent fixtures (islands, counters, bathtubs, electrical appliances, etc.)
Ouellet Floor Heating Cable Products
OTR Series
The floor heating cable for membrane provides comfort and well-being through radiant heating.
Produces enveloping heat that is also clean, cost-effective, uniform, and constant.
Specifically designed for use with uncoupling membrane installation systems.
No mechanical fasteners required.
Membrane provides mechanical protection for the cable.
OWC-M Series
100% energy efficient, the concrete heating cables from Ouellet are also faster and more economical to install than a hydronic system. They require no annual maintenance and provide quiet and clean heat without any liquid or pump.
Furthermore, our heating cables for concrete allow for zoning so each room can be separately controlled.
Designed for installation with or without metallic structure for reinforced concrete, our heating cables for concrete on mat are solely for interior applications.
They are ideal for basements, condominiums, cottages, garages and much more… Their full potential is yours to discover!
OWF-R Series

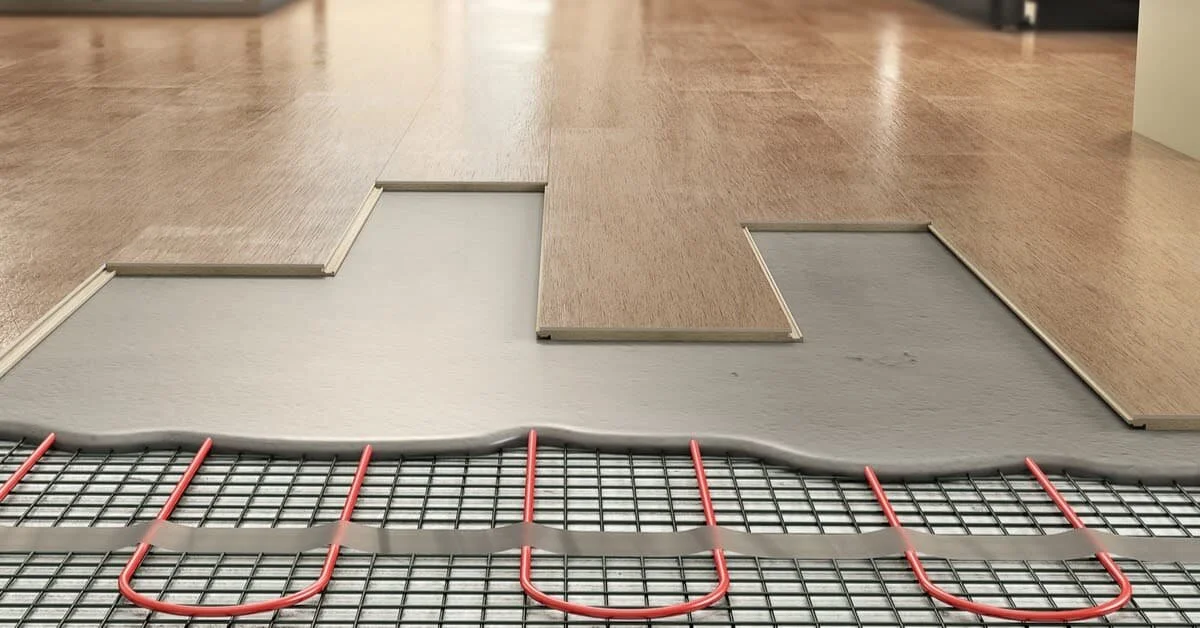

The floor heating cable for installation with strapping provides comfort and well-being through radiant heating. By heating the floor itself instead of the surrounding air, it provides indirect heat that radiates from the floor up and is absorbed by surrounding objects,
It produces enveloping heat that is also clean, cost-effective, uniform, and constant.
Most economical installation method.
Small, sturdy and flexible cable.
Provided with 5 mm thick interlocking plastic strapping for quick, secure installation.
Versatile: can be used as a backup or a main source of ambient heating.
For use in rooms of any shape or size.
12W/sq. ft. (3” spacing) or 9W/sq. ft. (4” spacing).
25-year warranty on the heating cable.
