CUBEFuse

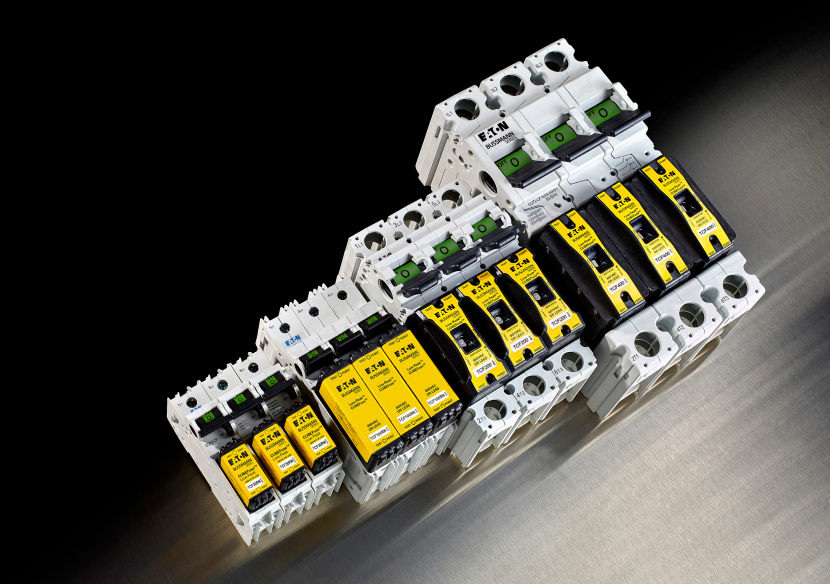

The revolutionary Bussmann™ series Low-Peak™ CUBEFuse™ delivers the smallest footprint compared to any Class CC, J or RK fuse solution — requiring up to 70% less space when combined with its unique fuse holder or UL® 98 Listed Compact Circuit Protector switch.

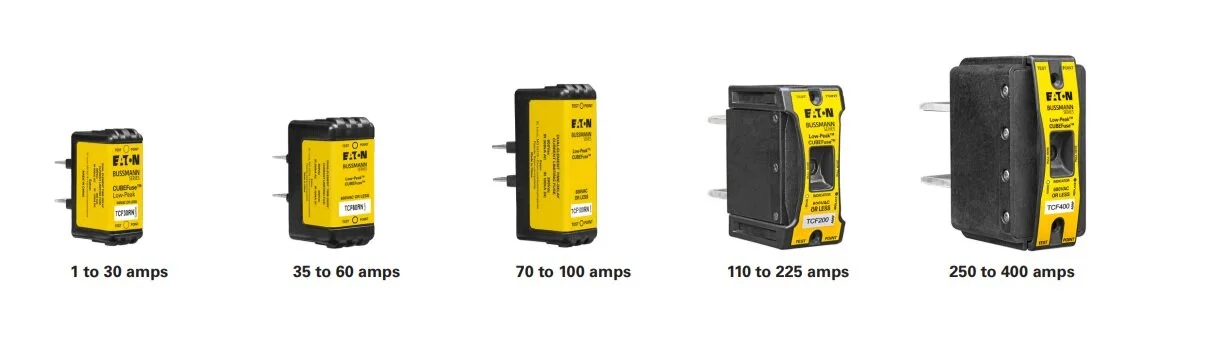

Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Now, the CUBEFuse spans 1 to 400 amps.

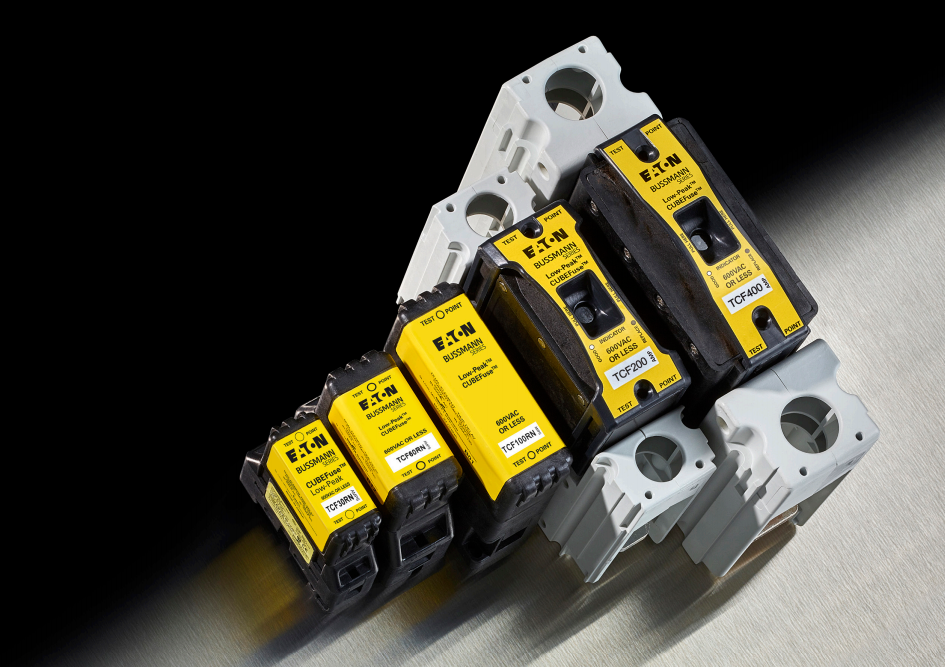

In addition to having the smallest footprint of any Class CC, J or RK fuse solution, the Bussmann series LowPeak CUBEFuse is the only product included in the UL Class CF. It’s a current-limiting, dual-element, time-delay branch circuit fuse with Class J electrical performance. And it features industry-first plug-in capability for easier installation.

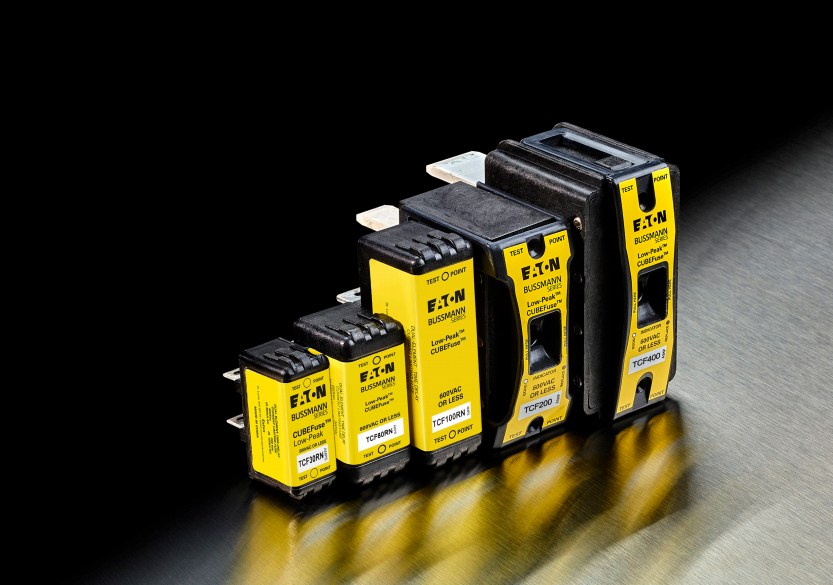

The finger-safe CUBEFuse is available in both indicating and non-indicating versions, with the indicating version featuring easyIDTM open fuse technology for faster troubleshooting and reduced downtime. The CUBEFuse is easily applied with CUBEFuse holders, Compact Circuit Protector switches or the Compact Circuit Protector Base.
Volts: 600 Vac/300 Vdc, Amps: 6 to 400 A (indicating)/1 to 400 A (non-indicating)
“We like using CUBEFuse products for their compact size, amperage range, finger-safe features, and ease of change-out. The color scheme also stands out well so the bank of fuses is easy to locate in the cabinet.”
CUBEFuse holder
The Bussmann series CUBEFuse holder delivers the smallest footprint compared to any Class CC, J or RK fuse and holder solution — requiring up to 70% less space.
While minimizing footprint, the CUBEFuse holder still provides up to 300 kA SCCR. Now, the CUBEFuse holder is available in 30, 60, 100, 200, 225 and 400 amp versions.

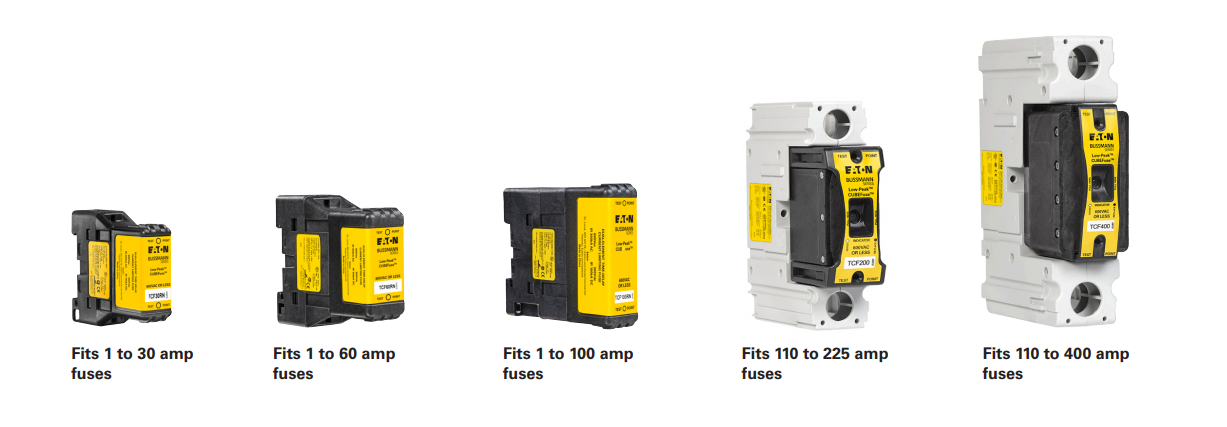

The Bussmann series CUBEFuse holder is a finger-safe* modular system of single-pole 30, 60, 100, 200, 225 and 400 amp holders. All holders can be dovetailed together to create the desired number of poles for the application, with 30, 60 and 100 A holders able to have mixed amp ratings.
Five sizes of holders (200 and 225 A versions have the same footprint) help prevent overfusing by rejecting higher fuse amp ratings. 30, 60 and 100 A holders can be DIN-Rail mounted, and all holders can be panel mounted.
Compact Circuit Protector
The Bussmann series CCP is a fused UL 98 Listed branch circuit disconnect switch utilizing Bussmann series Class CF CUBEFuse with Class J performance.

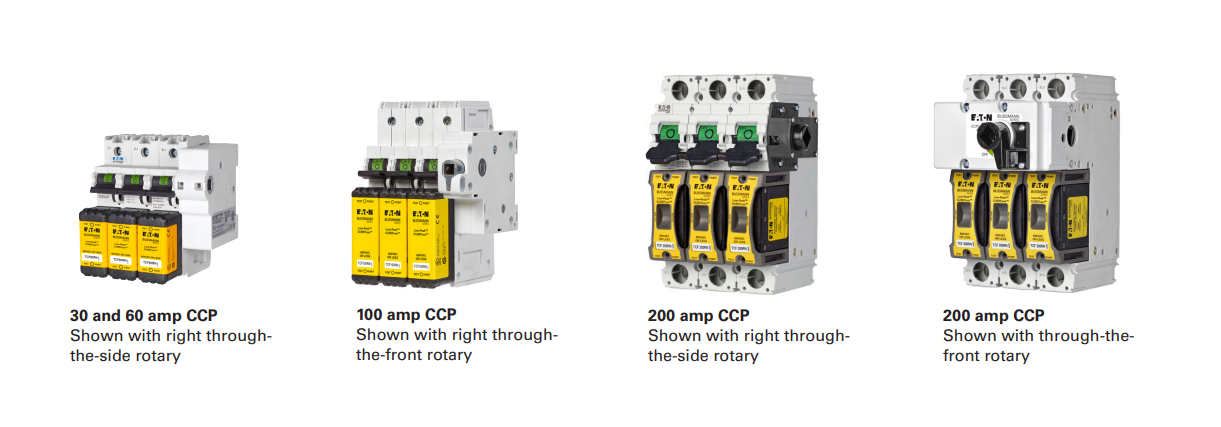

The CCP is available in 30, 60, 100 and 200 A versions (30 and 60 A versions have the same footprint) and is panel mountable and DIN-Rail mountable (up to 100 A). The CCP is available as a switch-only, or with front or side rotary mechanisms.
All CCPs are available with a variety of accessories, including lug kits with terminal shrouds, pistol handles, NFPA 79 compliant handles and auxiliary contacts
“We’re constantly looking for innovations that promote
customer safety and quality. The CUBEFuse and Compact Circuit Protector disconnects have helped us stay in the lead in both these areas without increasing our panel footprint.”
Quik-Spec Coordination Panelboard

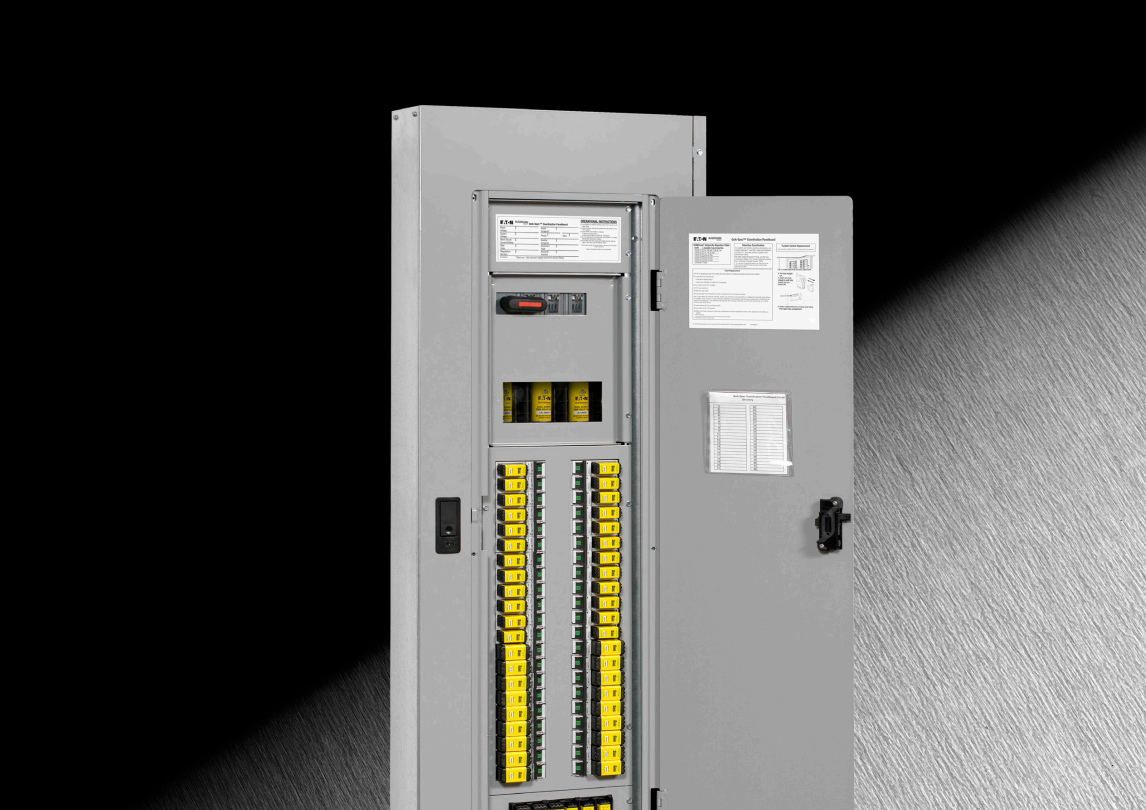

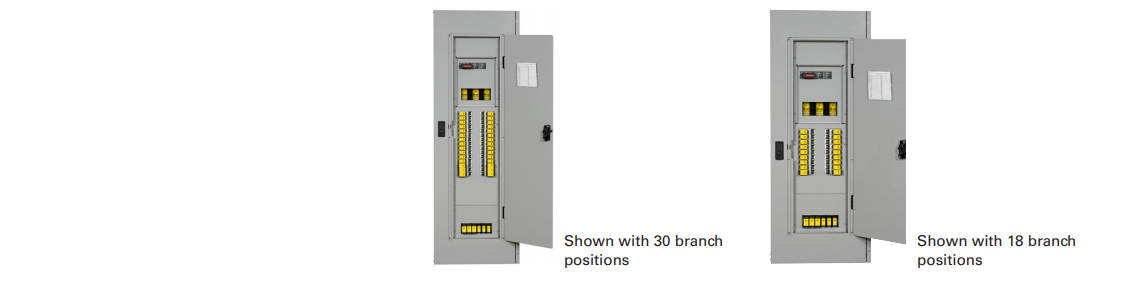

The Bussmann series Quik-SpecTM Coordination Panelboard (QSCP) is a compact fusible distribution panel that requires 40% less space than traditional fusible solutions.
With up to 200 kA SCCR, the QSCP offers the best selective coordination solution in the smallest footprint.
The Bussmann series QSCP provides up to 200 kA SCCR while requiring 40% less space than traditional fusible panelboards. Highly configurable, the QSCP is available in NEMA 1 and 3R enclosures, and can be used as a branch circuit or UL service entrance panel in systems up to 600 Vac.
The QSCP uses the Bussmann series Compact Circuit Protector Base (CCPB) and Bussmann series CUBEFuse for its branch circuit disconnects.
